1. On the [Model] tab, go to
   ,
   and click [Analysis Condition] .

   The [Analysis Condition Setting] dialog will show up.

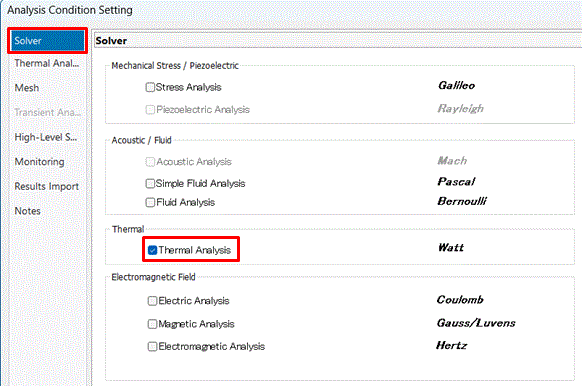

2. Select [Thermal analysis "Watt"] on the [Solver] tab.

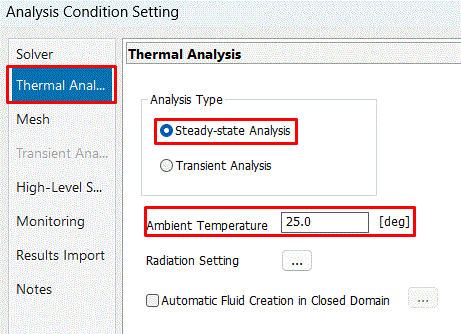

3. Click the [Thermal analysis] tab.

   Confirm that [Analysis Type] is set to [Steady-state analysis] and [Ambient Temperature] is set to 25[deg].

   Then, click .

The analysis conditions have been set.
