00. Overview

A flow in the flow path with an obstacle is solved in this tutorial.

Analysis Space

Setting Item	Setting
Analysis Space	3D
Model Unit	mm



Analysis Condition

Setting Item	Setting
Analysis Type	Steady-state analysis

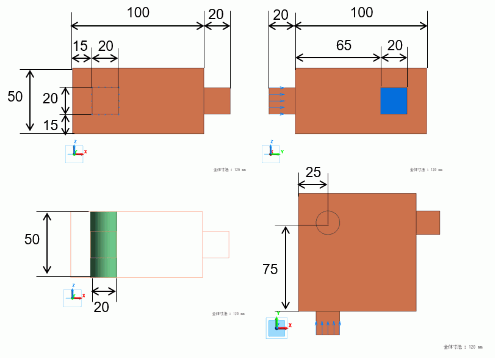

Model

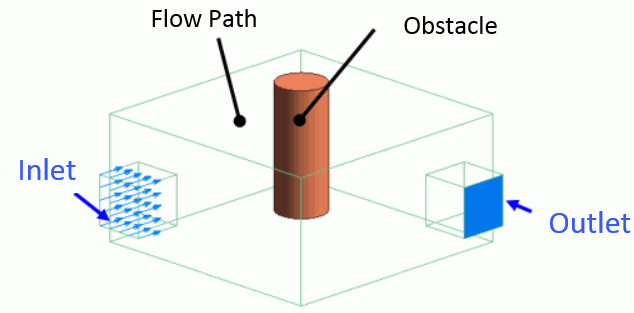

An inlet and an outlet are boxes.An obstacle is a solid cylinder. Inlet boundary condition and outlet boundary condition are set to the inlet and outlet respectively, where the air flows.







Results Diagram

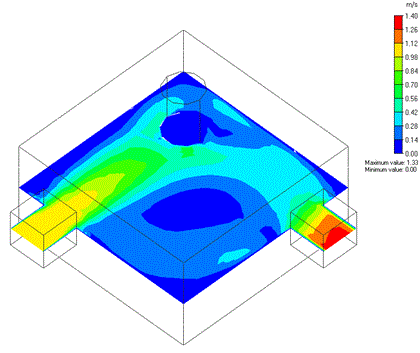

Gradation Contour of Flow Velocity
