1. Check the calculated values.

   The flow rate on the wall face and the force on the wall face can be summarized on the tables.



• Table can be seen by clicking [Table] on the [Results] tab.
  The values in the table can be copied and pasted, or exported in CSV.


2. We take a look at the gradation contour of the flow velocity.



   On the [Results] tab, go to

   and click [Gradation Contour] .

   The gradation contour diagram of the flow velocity will be shown.


• The results display settings such as contour diagram and vector diagram can be registered.

  The setting can be easily applied to other results.

  See [Registering Results Display Setting].

Gradation Contour of Flow Velocity

1. • To modify the contour display,

     on the [Results] tab, go to



     and click [Graphics Setup] .

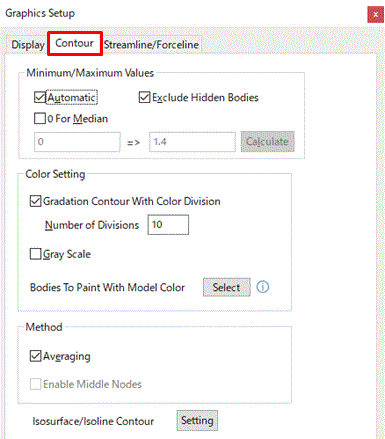

     In the [Graphics Setup] dialog box, select [Contour] tab,

     and modify the maximum/minimum values, the number of divisions, the colors etc.


The Contour tab is explained here

1. • The contour and vector values of a particular point can be obtained

     by specifying the coordinates.

     On the [Results] tab, go to

     ,

     and click [Results at Specified Coordinates] .


The [Results at Specified Coordinates] dialog box will show up.

Enter the coordinates of your interest and click the [Calculate] button.


See [Results at Specified Coordinates] for more information.

• The field and the coordinate settings can be registered for later reference.

  See [Registering Results Display Setting].

The contour and vector values for the currently chosen field will be shown on tooltips and the Output Window.

You can delete displayed tooltips by selecting [Delete All Tooltips] on the right-click menu.


3. Let's take a look at the results at the cross section.

   On the [Results] tab



   click [Show Cross Section] .

   The [Cross Section] dialog box will show up.

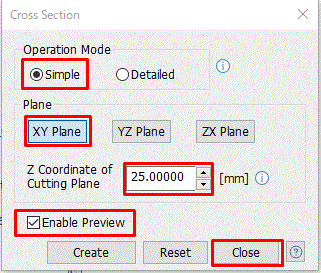

4. In the [Cross Section] dialog box, select Simple Mode.

   Select [Enable Preview] and
   click [XY Plane].
   Click [Close].


• If [Detailed Mode] is selected, multiple cross sections and the surface can be displayed simultaneously.

The cross section will show up.

Cross Section

5. Show the vectors of the flow velocity.

   On the [Results] tab



   click [Element Vector] .

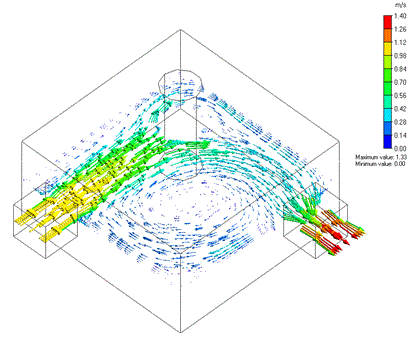

   The vector diagram of the flow velocity will show up.


The Vectors of Flow Velocity

6. Let's take a look at the results at the streamlines.



   On the [Results] tab,

   click [Show Cross Section] to cancel the display of cross section.

   Click [Element Vector] to cancel the display of vector diagram.

   Click [Streamlines] .

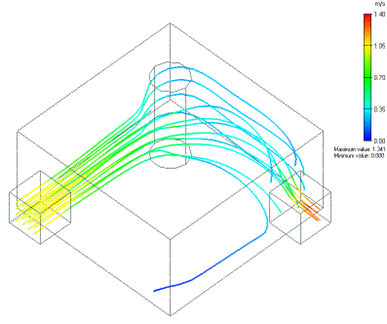

   The streamlines will be displayed.


Streamlines
