05.Set the Analysis Conditions
We set the analysis conditions.
Procedure
-
On the [Model] tab, go to
 ,
and click [Analysis Condition]  .
The [Analysis Condition Setting] dialog will show up.
|
|
-

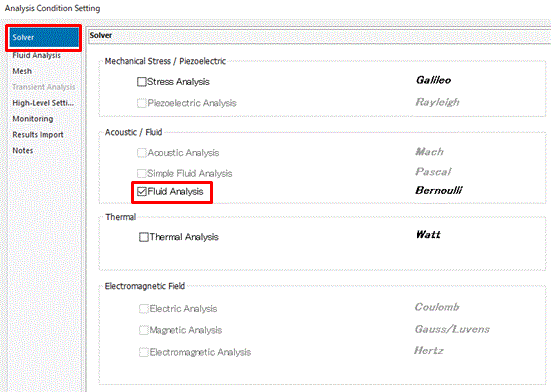

Select [Fluid analysis "Bernuolli"] on the [Solver] tab.
|
|
-
Click the [Fluid Analysis] tab.

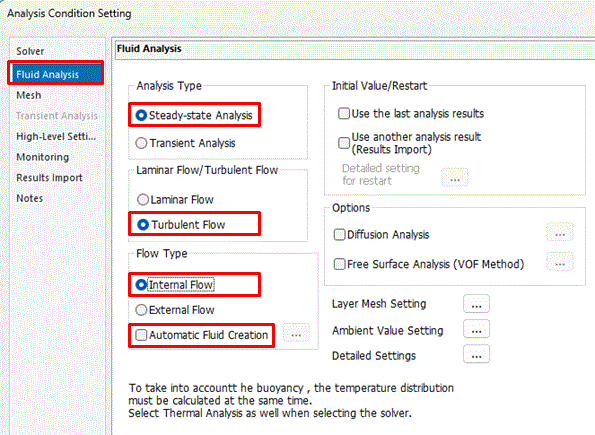

Confirm that [Analysis Type] is set to [Steady-state analysis], [Laminar Flow/Turbulent Flow] is set to [Turbulent Flow], and [Flow Type] is set to [Internal Flow],
and deselect [Automatic Flow Domain Creation] for the [Flow Type] to click  .
|
|
|
The analysis conditions have been set. |
|
