1. On the [Model] tab, go to , click [Sheet Body], and select [Rectangle [Specify Length]] on the submenu.


2. Designate the startpoint.

   In the parameter input dialog box, enter Startpoint (X: 3.5, Y: 3, Z: 1) and click .


3. Set the width.

   Enter Width: 3 and click .

4. Set the height.

   Enter Height: 7 and click .

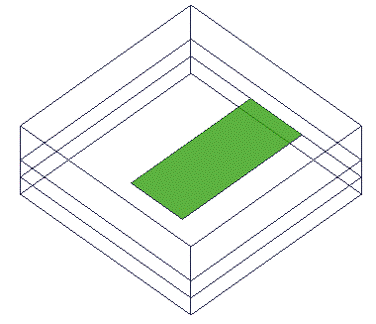

A rectangle has been created.

In this figure, the created rectangle is selected.

5. Create another rectangle

   In the parameter input dialog box, enter Startpoint (X: 3.5, Y: 0, Z: 2) and click .


6. Set the width.

   Enter Width: 3 and click .

7. Set the height.

   Enter Height: 7 and click .

8. Click in the parameter input dialog box and exit.

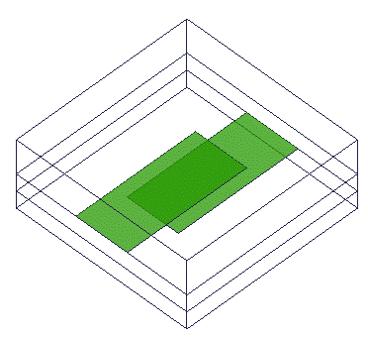

Inner electrodes have been created.

In this figure, the rectangles created here are selected.
