1. Check the calculated values.

   The capacitances and the electrostatic forces can be summarized on tables.


2. Tables can be seen by clicking [Table] at on the [Results] tab of the results window.
   The values in the table can be copied and pasted, or exported in CSV.

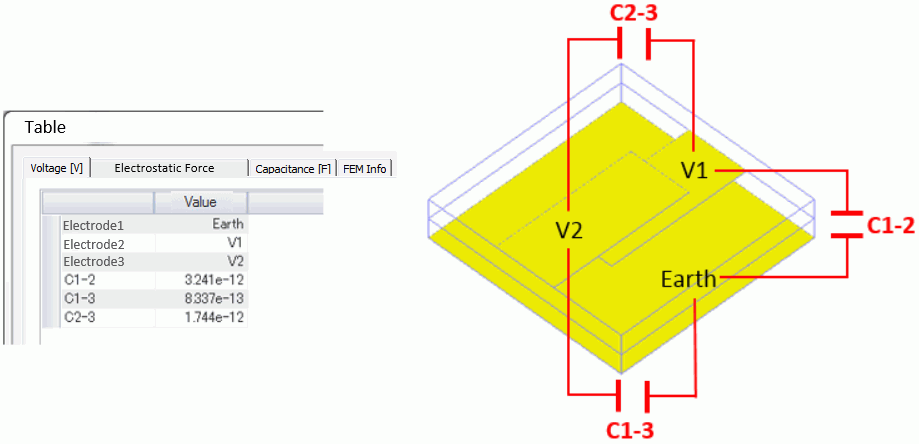

3. How to read the capacitance results



2. Let's see the electric field vectors.

   On the [Results] tab, go to



   and select [Electric Field] on the drop-down list at Field .

   Then click [Element Vector] .



The electric field vectors will show up.

• The setting for the results display can be registered for later reference.

  The setting can be easily applied to other results.

  See [Registering Results Display Setting].

The Vectors of Electric Field

• To modify the shape of vectors,

  on the [Results] tab, go to

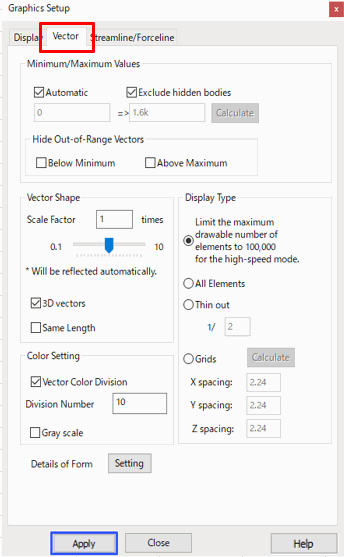

  and click [Graphics Setup] .

  In the [Graphics Setup] dialog box,

  select the [Vector] tab,

  and modify the magnitude and the shape of vectors.


The Vector tab is explained here


• The contour and vector values of a particular point can be obtained

  by specifying the coordinates.

  On the [Results] tab, go to

  ,

  and click [Results at Specified Coordinates] .


The [Results at Specified Coordinates] dialog box will show up. Enter the coordinates of your interest and click the [Calculate] button.


Results at specified coordinates are explained here

• The field and the coordinate settings can be registered for later reference.

  See [Registering Results Display Setting].

The contour and vector values for the currently chosen field will be shown on Output Window.
