1. On the [Model] tab, go to
   ,
   and click [Analysis Condition] .

   The [Analysis Condition Setting] dialog will show up.



2. Select [Electric analysis "Coulomb"] on the [Solver] tab.

3. Click the [Electric Analysis] tab.

   Confirm that [Analysis Type] is set to [Static analysis (Capacitance)].

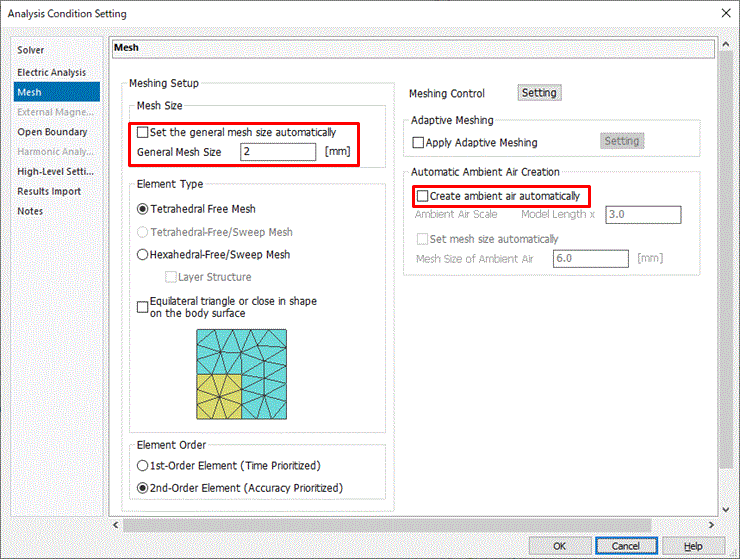

4. Click the [Mesh] tab.


   [Set the general mesh size automatically]: OFF
   [General mesh size]: 2
   [Create ambient air automatically]: OFF
   and click.


5. The simulation accuracy varies depending on the mesh size and other settings.
   Details are described at [How to Optimize the Simulation Accuracy].


• Air domain can be created automatically.
  For details, please refer to the Air Domain Creation on the [Mesh] tab

The analysis conditions have been set.
