04.Set the Body Attributes and the Material Properties

We assign names to the body attributes and the material properties. Various parameters associated with them will be set up here, too.

The body attribute is required to be set on each body. Various specific data, such as the thickness in the 2D analysis, the width of the wire element, the coordinates for anisotropic material, can be set on the body attribute.

Body attribute is distinguished by its name. Therefore it is not allowed to assign the same name to the different body attributes.


Material property constitutes the body. The material data might vary depending on the simulation you try.

Material property is distinguished by its name. Therefore it is not allowed to assign the same name to the different material data.



Procedure

  1. Highlight the inner circle on the modeling window and click to select.





  • To select a particular body out of several overlapping bodies, try the following methods:



    • Space Key Method

      Rest the mouse pointer on the overlapping area, and press the <Space> key.
      Body selection will change. The left-click will fix the selection.


    • List Selection Method

      Rest the mouse pointer on the overlapping area, and press the <Tab> key.
      The body selection list will appear. Select the body of your interest and left-click to fix the selection.




For more details, refer to How to Select Body and Topology where you will find “Clicking the Mouse” and “List Selection Method”.




Click

Highlight



Selected

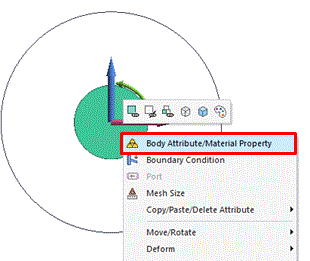

  1. On the [Right-Click] menu, click [Body Attribute/Material Property]

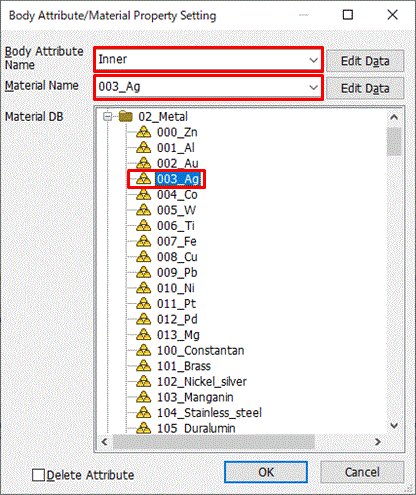

  1. In the [Body Attribute/Material Property Setting] dialog box,

    enter Body Attribute Name: INNER

    select 02_Metal on Material DB and select Material Name: 003_Ag and click .



  2. Any name is acceptable.

  1. Highlight the outer circle in the Modeling window and click to select.





Click

Highlight



Selected

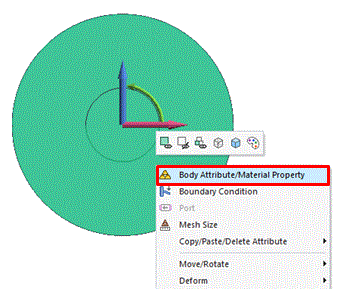

  1. On the [Right-Click] menu, click [Body Attribute/Material Property]

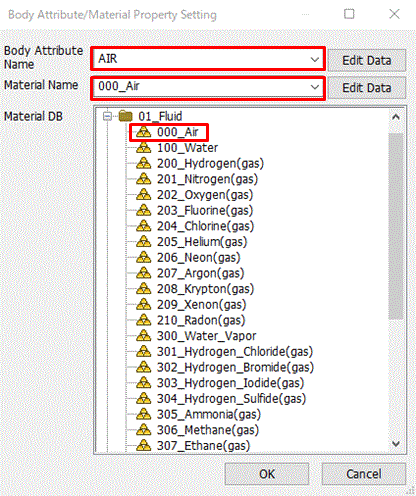

  1. In the [Body Attribute/Material Property Setting] dialog box,

    enter Body Attribute Name: AIR

    select 01_Fluid on the Material DB and select Material Name: 000_Air and click .



  2. Any name is acceptable.

The body attributes and the material properties have been set.
