00.Overview

The stress and the deformation of a pressured case are solved in this tutorial.
The case is pressurized from inside with 100 Pa while the case bottom is fixed.

Analysis Space

Setting Item	Setting
Analysis Space	3D
Model Unit	mm

Analysis Condition

Setting Item	Setting
Analysis Type	Static analysis

Model

Rotated View

Settings

The case bottom is fixed.
The case top is pressurized from inside.

Results

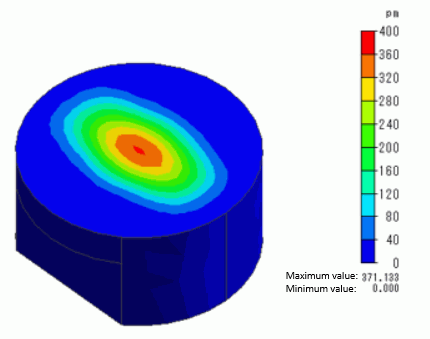

The Gradation Contour of Displacement

The displacement is high around the center of the case,
where the deformation is expected to be high.

Displacement Diagram

The deformation around the center is large as expected.
