03.Create a Boxes for the Outer Case Frame

Two boxes for the outer case frame are created.


Before		After

Let's create a box using the menu button. On the [Model] tab, go to , click [Solid], and select [Box [Specify Length]] on the submenu.

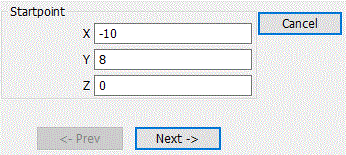

Designate the startpoint. In the parameter input dialog box, enter Startpoint (X:-10, Y:8, Z:0) and click .

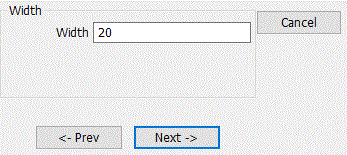

Set the width. Enter Width: 20 and click .

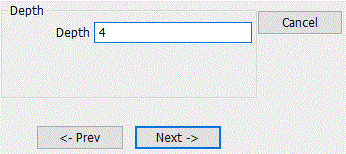

Set the depth. Enter Depth: 4 and click .

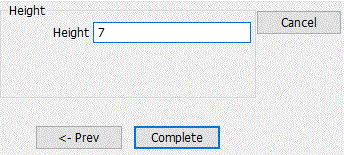

Set the height. Enter Height: 7 and click .
Click in the parameter input dialog box and exit. It is also possible to exit with the <Esc> key. A box for the outer frame has been created.

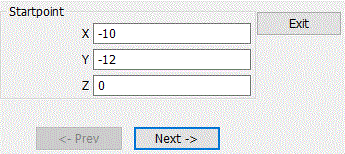

Create another box. On the [Model] tab, go to , click [Solid], and select [Box [Specify Length]] on the submenu. In the parameter input dialog box, enter Startpoint (X:-10, Y:-12, Z:0) and click .
Set the width. Enter Width: 20 and click .
Set the depth. Enter Depth: 4 and click .
Set the height. Enter Height: 7 and click .
Click in the parameter input dialog box and exit.
Two boxes for the outer frame have been created.
