The example analyzes electromagnetic waves inside a single-mode optical fiber that is popular in long-distance optical communications in the harmonic analysis.
Analysis Model:

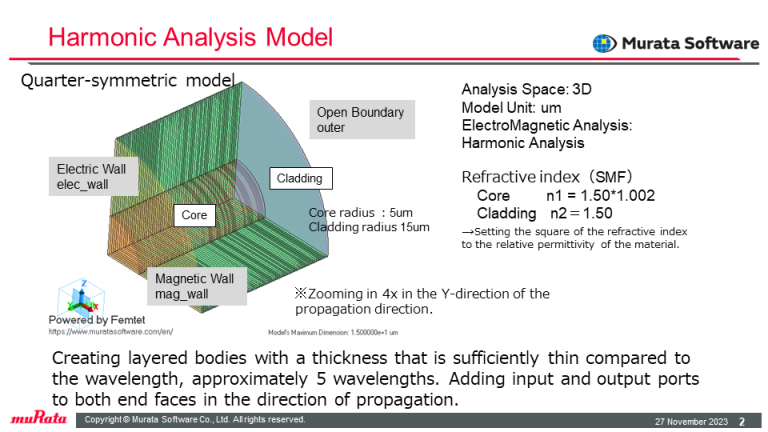

A quarter model is analyzed for less computational load.

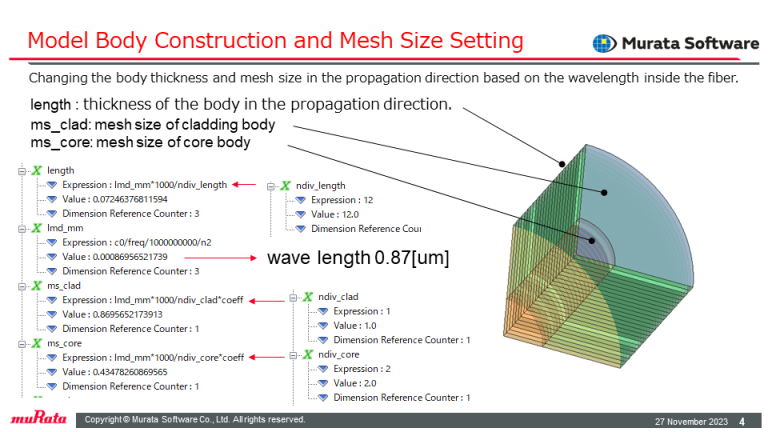

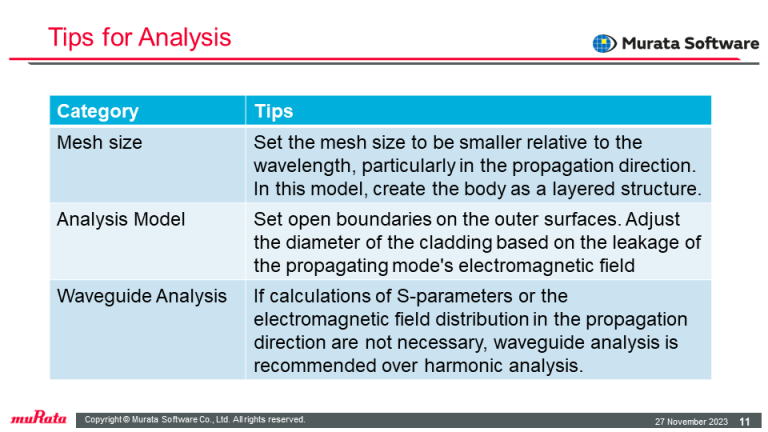

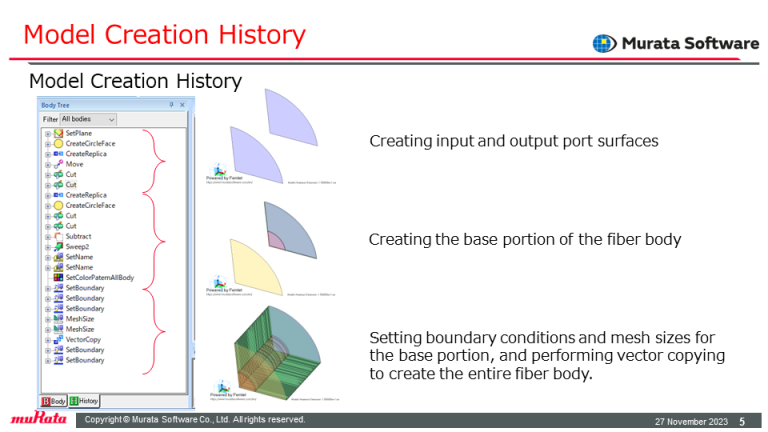

As the wavelength of the propagation mode is shorter than the diameter of the fiber, laminate a body with a thickness significantly smaller than the wavelength to create the model of an optical fiber.
Results:

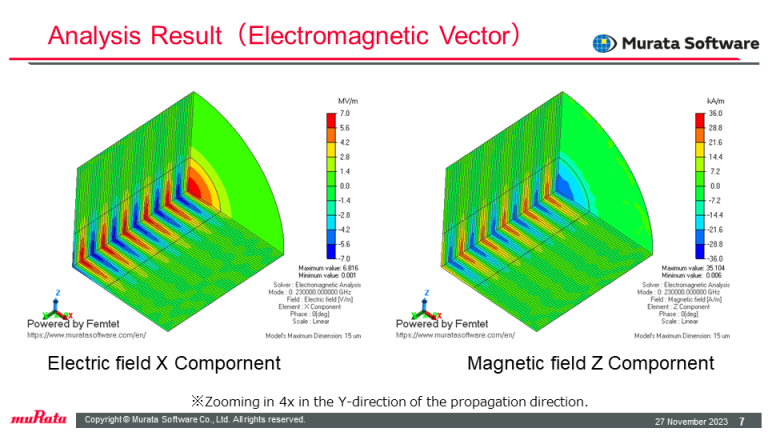

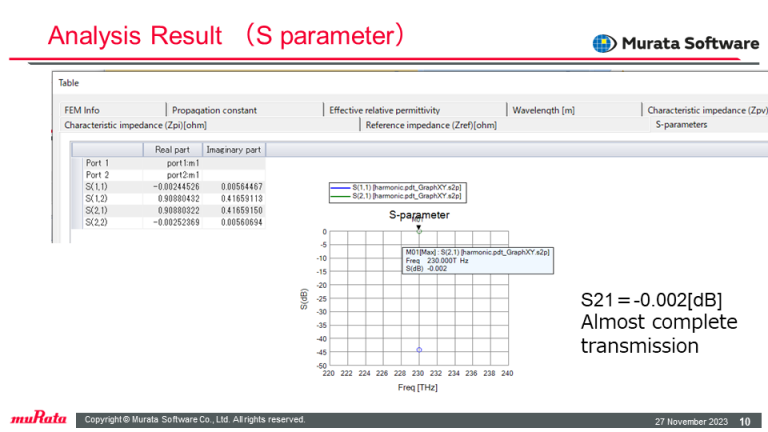

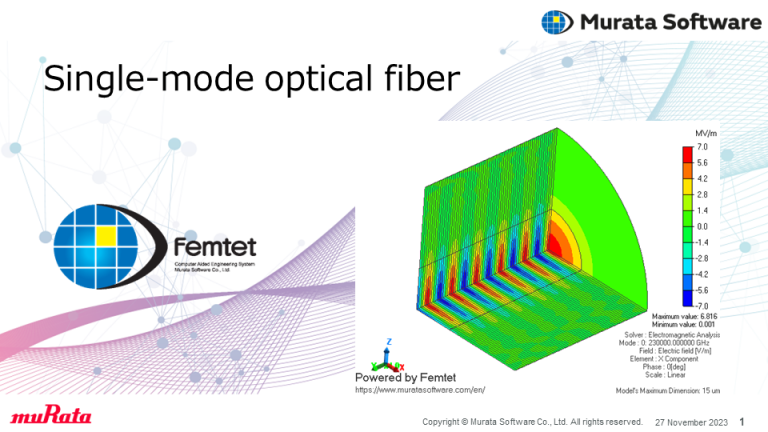

The result of the harmonic analysis allows you to observe the magnetic waves propagate concentrated in the core of the fiber and acquire S-parameters.
