Application100 Contact Analysis between Bat and Ball

General:
This example analyzes how the bat hits the ball.

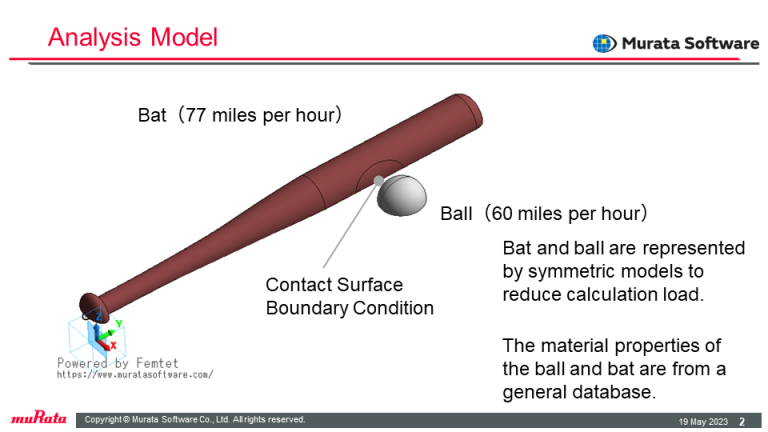

Analysis Model:
Initial velocities in opposite directions are set to a bat and a ball.

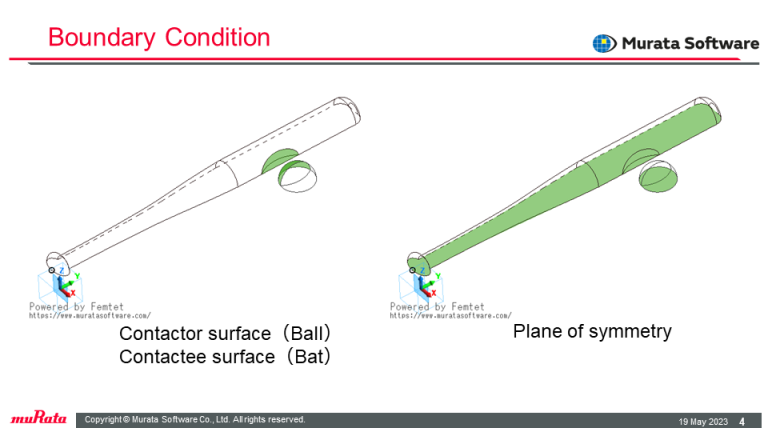

The boundary conditions of contactor and contactee are set to contacting areas.
The initial batting speed is based on the bat speed of Shohei Ohtani, an MVP player of MLB.


Result:

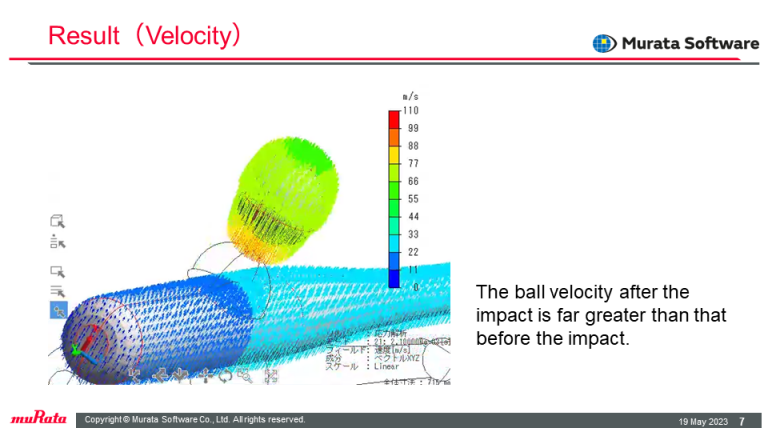

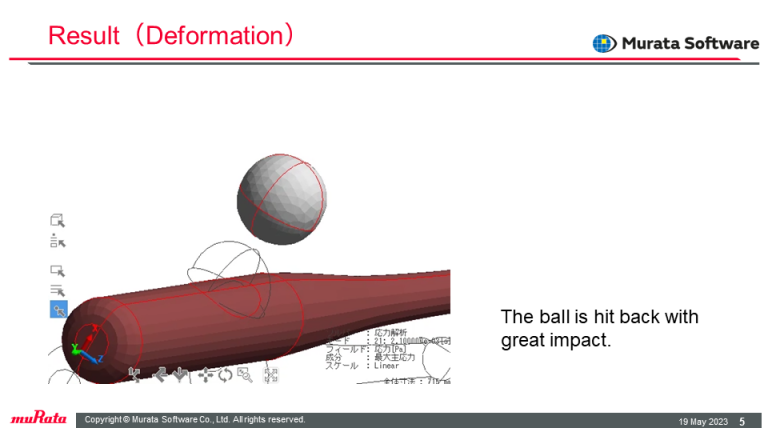

The result shows the ball is hit back with great impact by the bat.

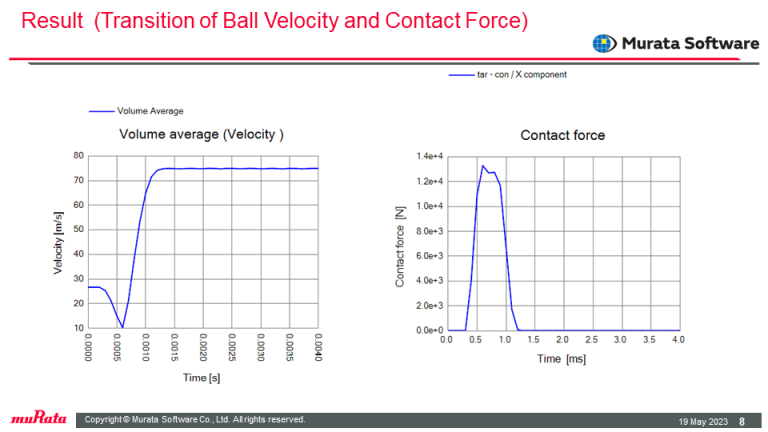

The stress graph represents the elastic waves generated in both the ball and the bat.

Please see Femtet official YouTube Channel where you can see the movie of this example.
