Application90 Analysis of position-controlled piezo elements

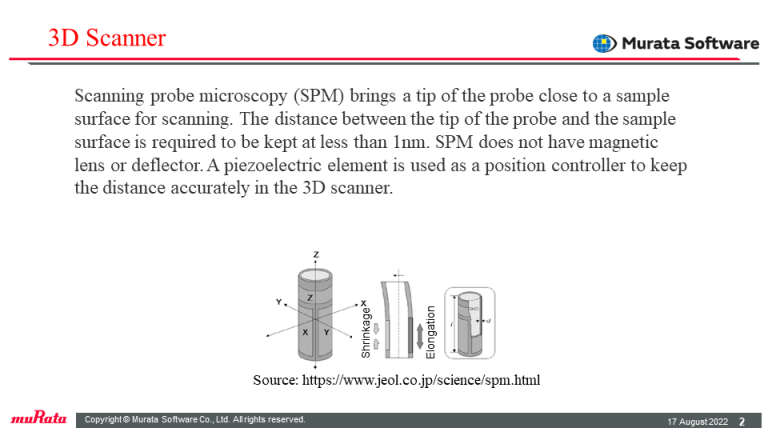

An analysis example of three-dimensional scanner (scanning element) composed of piezoelectric elements used for observing small areas such as SEM and AFM is shown.

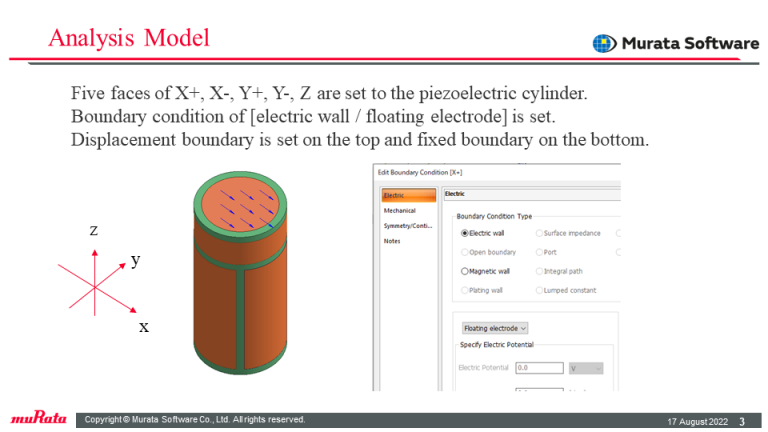

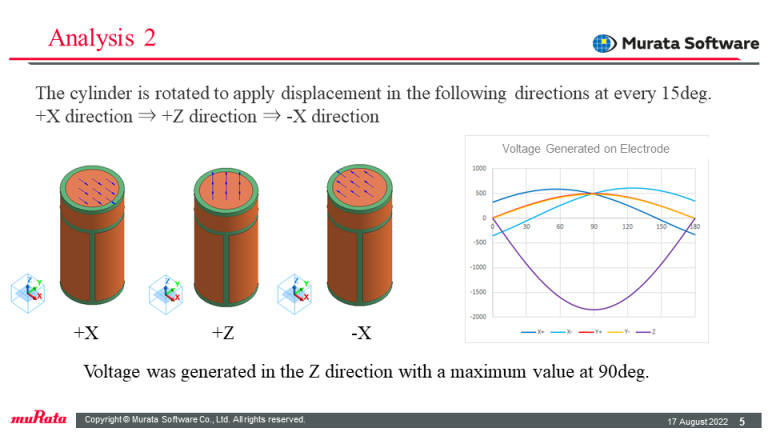

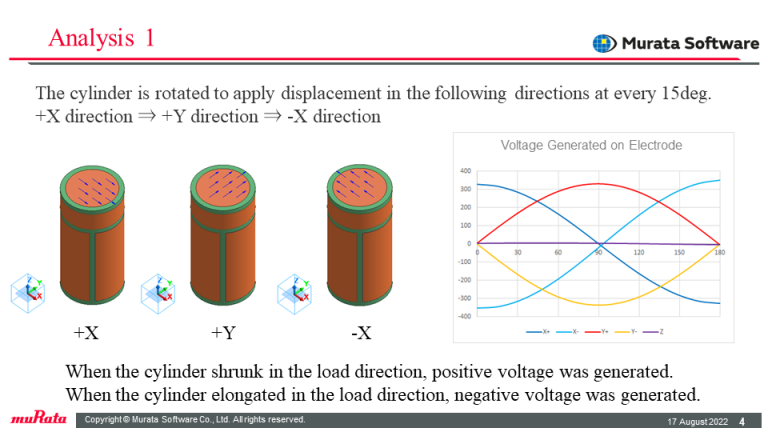

Detection electrodes for the X, Y and Z directions are attached to the side of the cylindrical piezoelectric element, and the position is controlled by monitoring the voltage generated on the electrodes according to the load.
