Example7 Heat Radiation by Forced Convection(Steady-State Analysis)

General

  • A heat source is placed on a substrate, and there is a forced air flow for cooling in parallel to the substrate. The heat radiation is analyzed under the steady-state condition.


  • The heat transfer coefficient is acquired manually.
    To acquire it automatically, see “Ex.1 of Simple Fluid-Thermal Analysis”.


  • The temperature distribution and the heat flux vectors are solved.


  • Unless specified in the list below, the default conditions will be applied.




Analysis Space

Item

Settings

Analysis Space

3D

Model unit

mm



Analysis Conditions

Item

Settings

Solver

Thermal Analysis [Watt]

Analysis Type

Steady-state analysis

Options

N/A

Model

The substrate (VOL1) and the heat source (VOL2) are created as solid body box, and the heat amount is defined in the body attribute of VOL2.

The heat transfer coefficients for the top and bottom faces of the substrate and the top face of the heat source are calculated by the simplified equation.

Body Attributes and Materials

Body Number/Type

Body Attribute Name

Material Name

0/Solid

VOL1

006_Glass_epoxy *

1/Solid

VOL2

001_Alumina *

* Available from the Material DB



The heat source of VOL2 is set up as follows.

Body Attribute Name

Tab

Settings

VOL2

Heat Source

1[W}

Boundary Conditions

The heat transfer coefficients for the forced convection are calculated as follows. For the details, please refer to the Heat Transfer Coefficient for Forced Convection

To acquire it automatically, see “Ex.1 of Simple Fluid-Thermal Analysis”.


h = 3.86 x (V/L)0.5xC [W/m2/deg]



where

Air flow V=1[m/s]

On the top and bottom faces of VOL1: Characteristic length L=0.05, C=1 -> h=17.26
Top face of the heat source (VOL2): Characteristic length L=0.02, L’=0.015, C=1 * -> h=27.3



*

The thickness (d) of the speed boundary layer at the edges of the heat source is calculated as follows



d=0.0182x(L’/V)0.5= 2.3[mm]



This is close enough to the thickness of heat source, so we set C=1.



Boundary Condition Name/Topology

Tab

Boundary Condition Type

Settings

BC1/Face

Thermal

Heat Transfer/Ambient Radiation

Heat transfer coefficient: 27.3 [W/m2/deg]

Ambient temperature: 25[deg]

BC2/Face

Thermal

Heat Transfer/Ambient Radiation

Heat transfer coefficient: 17.26 [W/m2/deg]

Ambient temperature: 25[deg]

Results

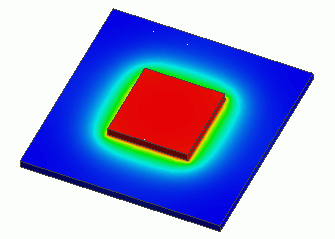

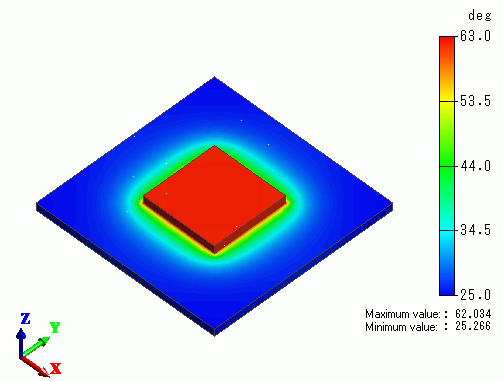

The temperature distribution is shown below.

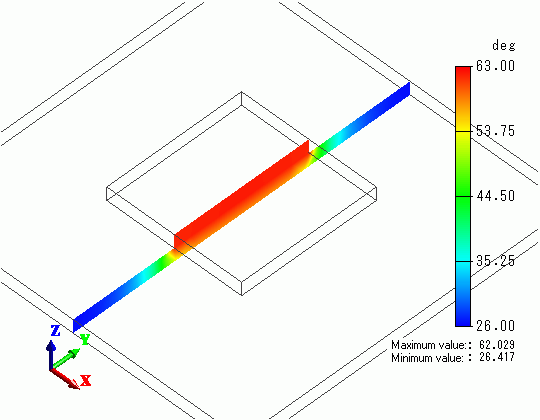

A section’s temperature distribution is shown below.
