Example12 Uniform Temperature Boundary Condition

General

  • The “uniform temperature” boundary condition is studied.


  • The temperature distribution is even on the uniform temperature faces.


  • The topologies set with the “uniform temperature” boundary condition will have the same temperature if they bear the same name.


  • The temperature distribution and the heat flux vectors are solved.


  • Unless specified in the list below, the default conditions will be applied.




Analysis Space

Item

Settings

Analysis Space

3D

Model unit

mm



Analysis Conditions

Item

Settings

Solver

Thermal Analysis [Watt]

Analysis Type

Steady-state analysis

Options

N/A

Model

Two square rods are positioned separately with their ends facing each other.

Those face topologies are set with the “uniform temperature” boundary condition, and both are named Hyper.

Body Attributes and Materials

Body Number/Type

Body Attribute Name

Material Name

0/Solid

VOL1

001_Al *

1/Solid

VOL1

001_Al *

* Available from the Material DB

Boundary Conditions

Boundary Condition Name/Topology

Tab

Boundary Condition Type

Settings

0degree/Face

Thermal

Temperature

0[deg]

85degree/Face

Thermal

Temperature

85[deg]

Hyper

Thermal

Adiabatic

Select “Uniform temperature”.



Results

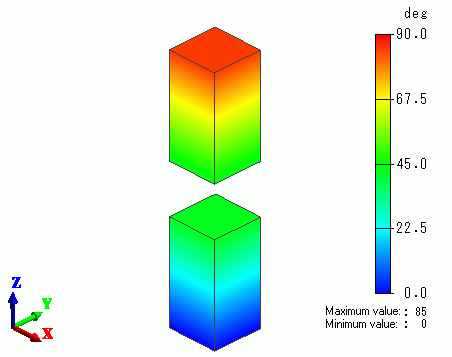

The temperature distribution is shown below.

The temperatures of uniform temperature boundary conditions bearing the same name are supposed to be equal, even if they are set on the separate bodies.

The simulation results confirms that.



If the uniform temperature is deselected, the temperature distribution will look like below.

Each body reaches its own final temperature.
