03.Set the Analysis Conditions
We set the analysis conditions.
Procedure
-
On the [Model] tab, go to
 ,
and click [Analysis Condition]  .
The [Analysis Condition Setting] dialog will show up.
|
|
-

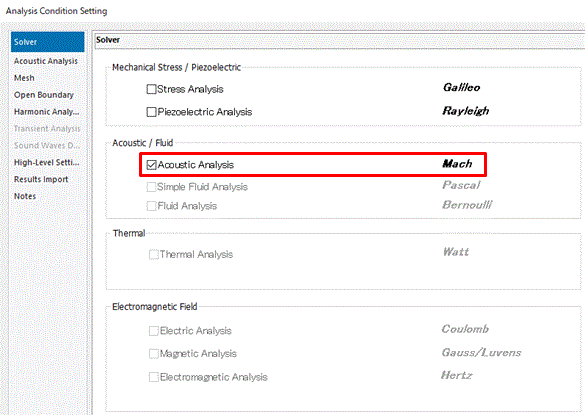

Select [Acoustic analysis "Mach"] on the [Solver] tab.
|
|
-

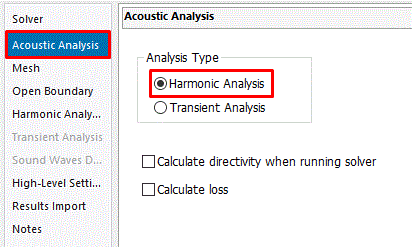

Click the [Acoustic] tab.
Confirm that the [Analysis Type] is [Harmonic analysis].
|
|
-

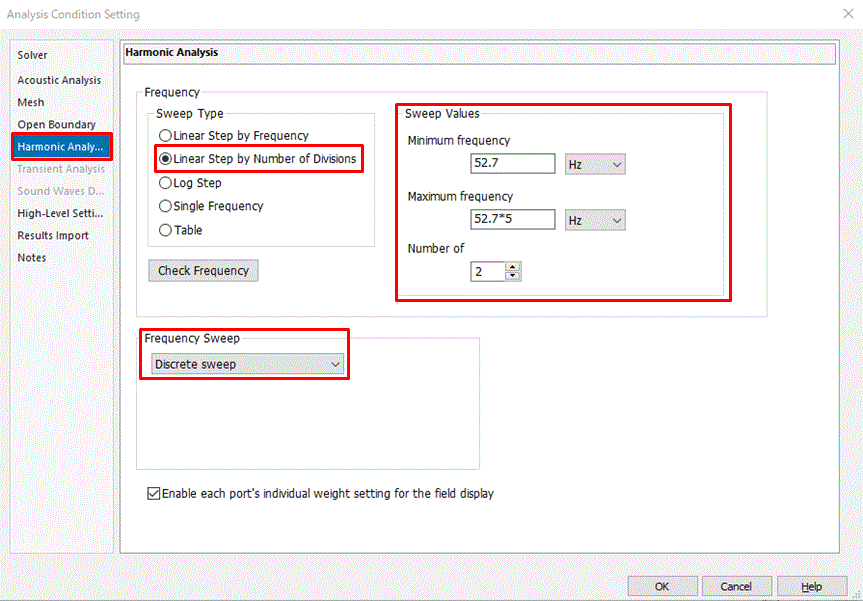

On the [Harmonics Analysis] tab, set as follows;
Sweep Type: Linear step by Number of Divisions
Minimum Frequency: 52.7[Hz]
Maximum Frequency: 52.7*5[Hz]
Number of Divisions: 2
Sweep setting: Discrete sweepClick  .
|
|
|
The analysis conditions have been set. |
|
