1. Check the calculated values.

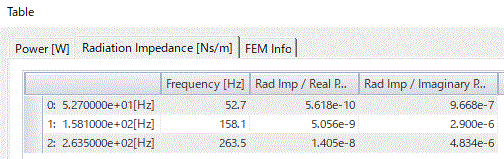

   The power and the radiation impedance are summarized in a table.



• Tables can be seen by clicking [Table] at on the [Results] tab of the results window.
  The values in the table can be copied and pasted, or exported in CSV.


2. Let's see the contour diagram of the sound pressure

   On the [Results] tab, go to



   and click [Gradation Contour] .

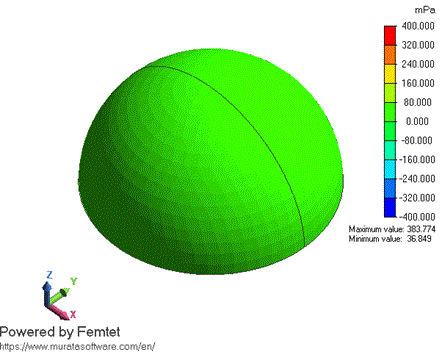

   The gradation contour diagram of the displacement will be shown.

• The setting for the results display can be registered for later reference.

  The setting can be easily applied to other results.

  See [Registering Results Display Setting].


1. • To modify the contour display,

     on the [Results] tab, go to



     and click [Graphics Setup] .

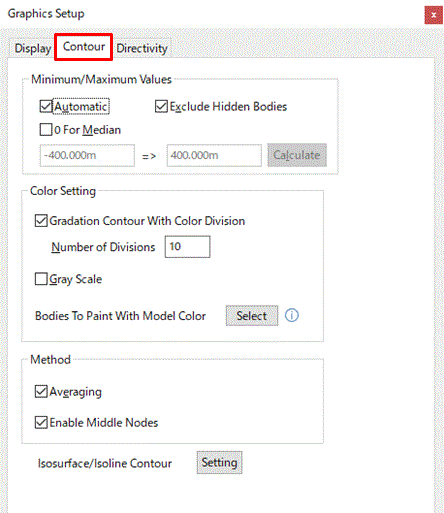

     In the [Graphics Setup] dialog box, select [Contour] tab,

     and modify the maximum/minimum values, the number of divisions, the colors etc.


The Contour tab is explained here


1. • The contour and vector values of a particular point can be obtained

     by specifying the coordinates.

     On the [Results] tab, go to



     and click [Results at Specified Coordinates] .

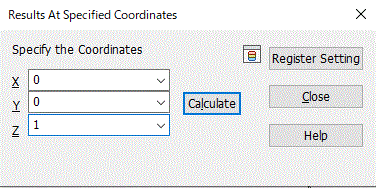

The [Results at Specified Coordinates] dialog box will show up.

Enter the coordinates of your interest and click the [Calculate] button.


See [Results at Specified Coordinates] for more information.

• The field and the coordinate settings can be registered for later reference.

  See [Registering Results Display Setting].

The contour and vector values for the currently chosen field will be shown on Output Window.



3. The results can be seen in the cross sections.

   On the [Results] tab, go to



   and click [Show Cross Section] .

   The [Cross Section] dialog box will show up.

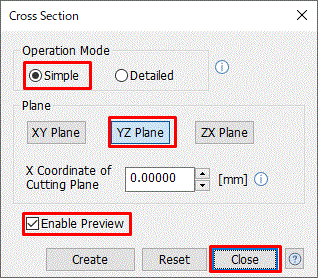

4. In the [Cross Section] dialog box, select Simple Mode.

   Select [Enable Preview] and
   click [YZ Plane].
   Click [Close].

• If [Detailed Mode] is selected, multiple cross sections and the surface can be displayed simultaneously.

Press ▼ at the bottom of [Change View] .

On the submenu, click [Right View] .

The contour at the frequency of 52.7 [Hz] will be shown.

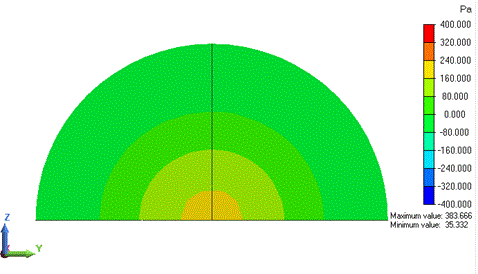

The Contour of Sound Pressure at 52.7 [Hz]

6. Let's change the frequency.

   Frequencies are listed at Mode

   on the [Results] tab,

   .


Select 158.1 [Hz]. A new contour will show up.

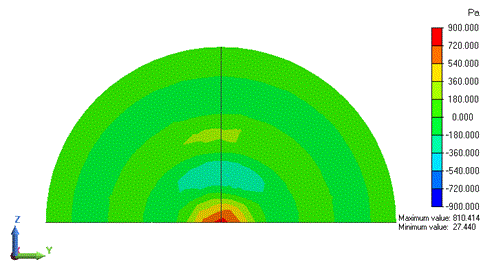

The Contour of Sound Pressure at 158.1 [Hz]

7. Select 263.5 [Hz] for another contour example.

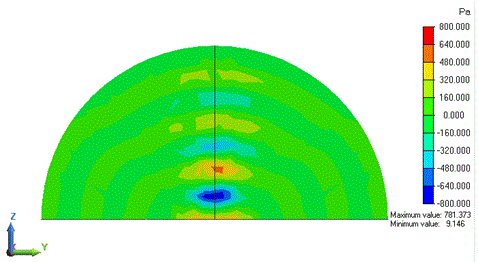

The Contour of Sound Pressure at 263.5 [Hz]
