09.Run the Mesher and the Solver
Run the solver.
Procedure
-
Set the mesh size.
On the [Model] tab, go to  ,
and click [Analysis Condition]  .
The [Analysis Condition Setting] dialog box will show up.
|
|
-
Click the [Mesh] tab.

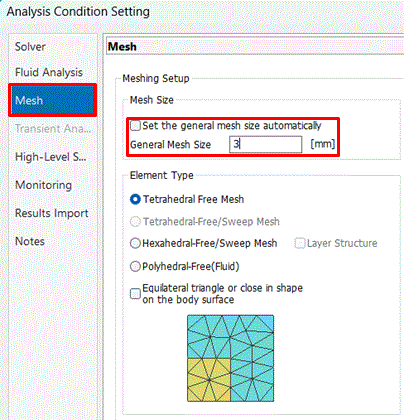

Deselect [Set the general mesh size automatically]
Enter 3 in [General Mesh Size]
Click  .
-
The simulation accuracy varies depending on the mesh size and other settings.
Details are described at [How to Optimize the Simulation Accuracy].
|
|
-
On the [Model] tab, go to
and click [Run Mesher/Solver]  .
The calculation will start.
|
|
-

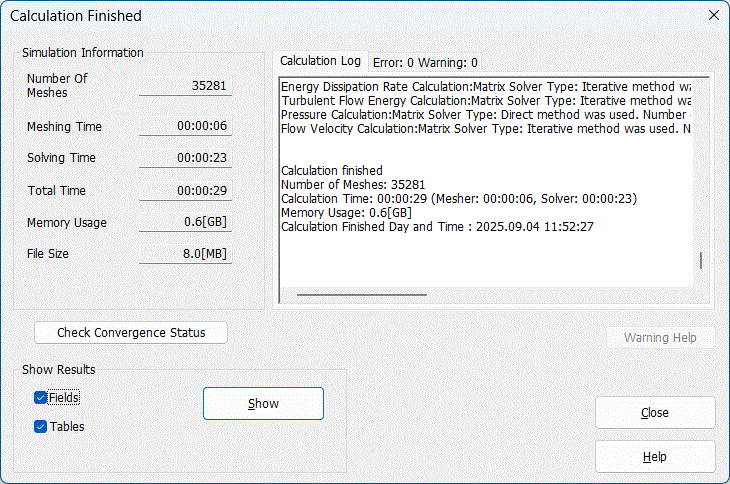

The [Calculation Finished] dialog box will show up when the calculation finishes.
Select both [Field] and [Table]
and click  .
|
|
|
The screen will change to Results Window, and the meshing result will show up.
The table will also show up.
|
|
