00.Overview

Torque of IPM motor and distribution of magnetic flux density are solved in this tutorial.

In this tutorial, the model is created manually. It can also be created automatically if a motor modeling tool is used.
See [Magnetic Analysis [Luvens, Motor Modeling Tool] for the details.
If you want to conduct the static analysis or harmonic analysis, go to the tutorial of "Magnetic analysis (Gauss, Static analysis)

Analysis Space

Setting Item	Setting
Analysis Space	2D
Model Unit	mm

Analysis Condition

Setting Item	Setting
Analysis Type	Transient Analysis

Model Shape

The model is 2D and half-period symmetric.

Diameter of the motor is 100[mm].

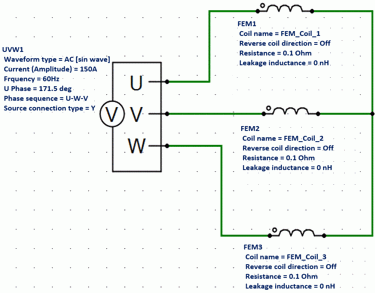

External Circuit

External circuit below is used for the analysis.

Phase resistance is 0.1Ω.

Results

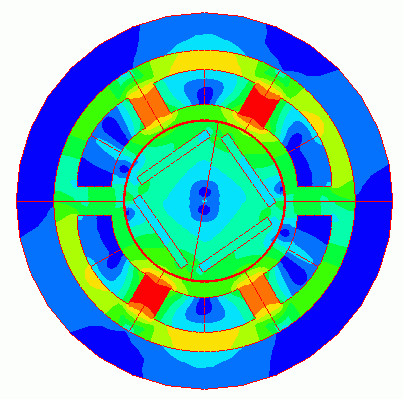

Contour diagram of the magnetic flux density

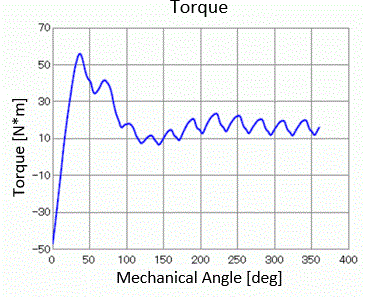

Torque
